Architecture Overview

Log-Central is a centralized and scalable log processing and viewing system designed to handle high-volume log data efficiently.
It provides an end-to-end pipeline for log ingestion, transformation, storage, and viewing using modern open-source technologies.

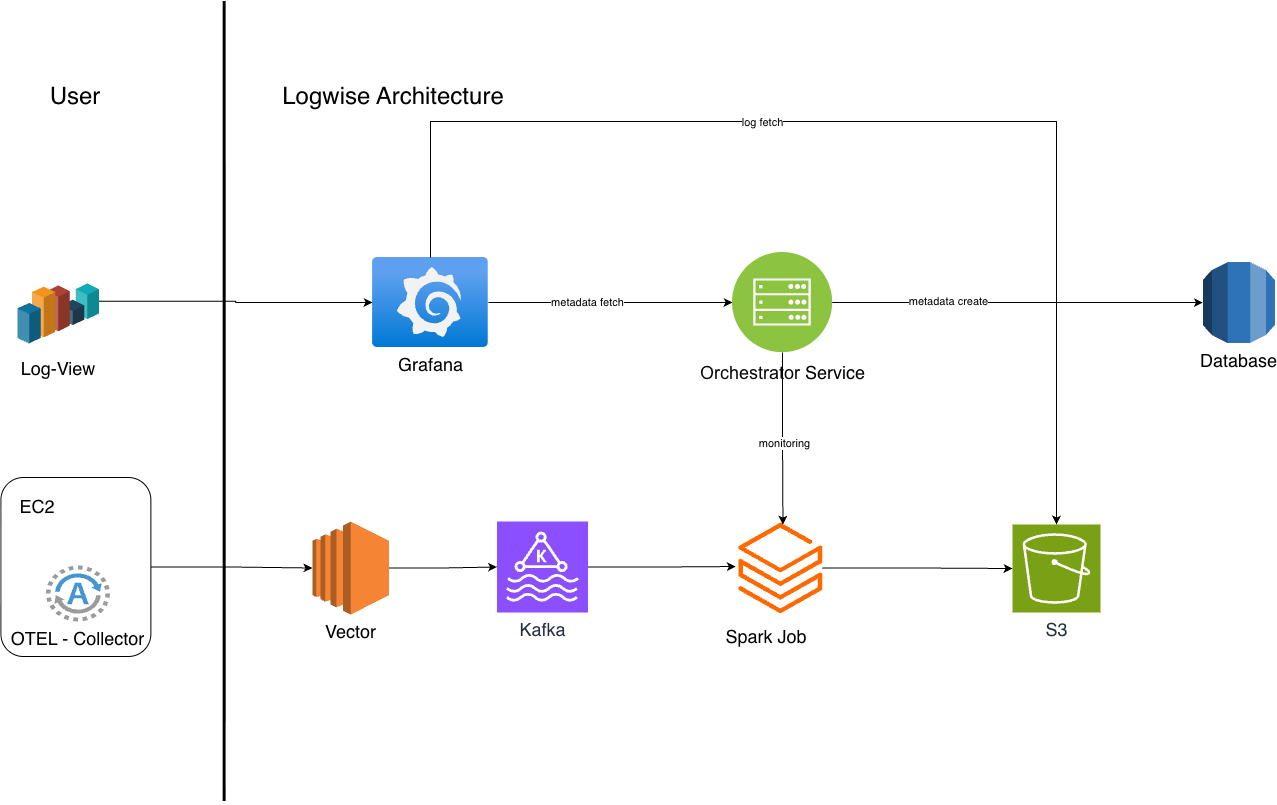

Architecture Diagram

Components

1. Vector

• Serves as the entry point for log ingestion from multiple sources.
• Performs:
  • Log enhancement: Adds metadata and enriches messages.
  • Key normalization: Removes problematic keys for compatibility.
  • Format conversion: Converts logs into protobuf for standardization.
  • Compression: Uses protobuf format to reduce bandwidth and storage usage.
• Sends processed logs to Kafka for ingestion and buffering.

---

2. Kafka

• Provides a high-throughput, fault-tolerant, and scalable log ingestion layer.
• Vector dynamically creates Kafka topics using the service_name tag:
  • service_name
• Enables decoupled, delayed, or batched log processing to support downstream consumers like Spark.

---

3. Apache Spark

• Consumes raw logs from Kafka and transforms them into Parquet format for:
  • Efficient compression.
  • Faster queries and optimized data scanning.
• Writes output into Amazon S3 in Hive-compatible directory structure using this path pattern:

  service_name/year/month/day/hour/minute

• The Orchestrator Service monitors job health and manages Spark drivers.

---

4. Grafana

• Acts as the viewing and exploration layer for logs.
• Displays processed logs in table format for easy searching and filtering.
• Enables custom dashboards and interactive filters.
• Dropdown filters are populated using metadata generated by the Orchestrator Service from source tags.

---

5. Orchestrator Service

• The central control component that automates and maintains the overall system state.
• Performs several background operations:
  • Spark Monitoring: Keeps Spark drivers healthy and restarts them if needed.
  • Cleanup: Removes compacted Spark output files periodically to manage storage.
  • Metadata Management: Generates metadata used by Grafana and enforces log retention policies on S3 for archival.
• Ensures consistent, automated orchestration across all components.

Key Advantages

• Fully automated architecture.
• Supports real-time ingestion and batch transformation.
• Uses S3 for cost-efficient, durable log storage.
• Integrates seamlessly with Grafana for log viewing and analytics.
• Provides reliable orchestration and monitoring through the Orchestrator Service.

Summary

Log-Central delivers a comprehensive and automated solution for log aggregation, processing, and viewing.
By leveraging Vector, Kafka, Apache Spark, Grafana, and the Orchestrator Service, it ensures reliability, scalability, and visibility across distributed systems while keeping operational overhead minimal.
